#include <WorldPlane.h>

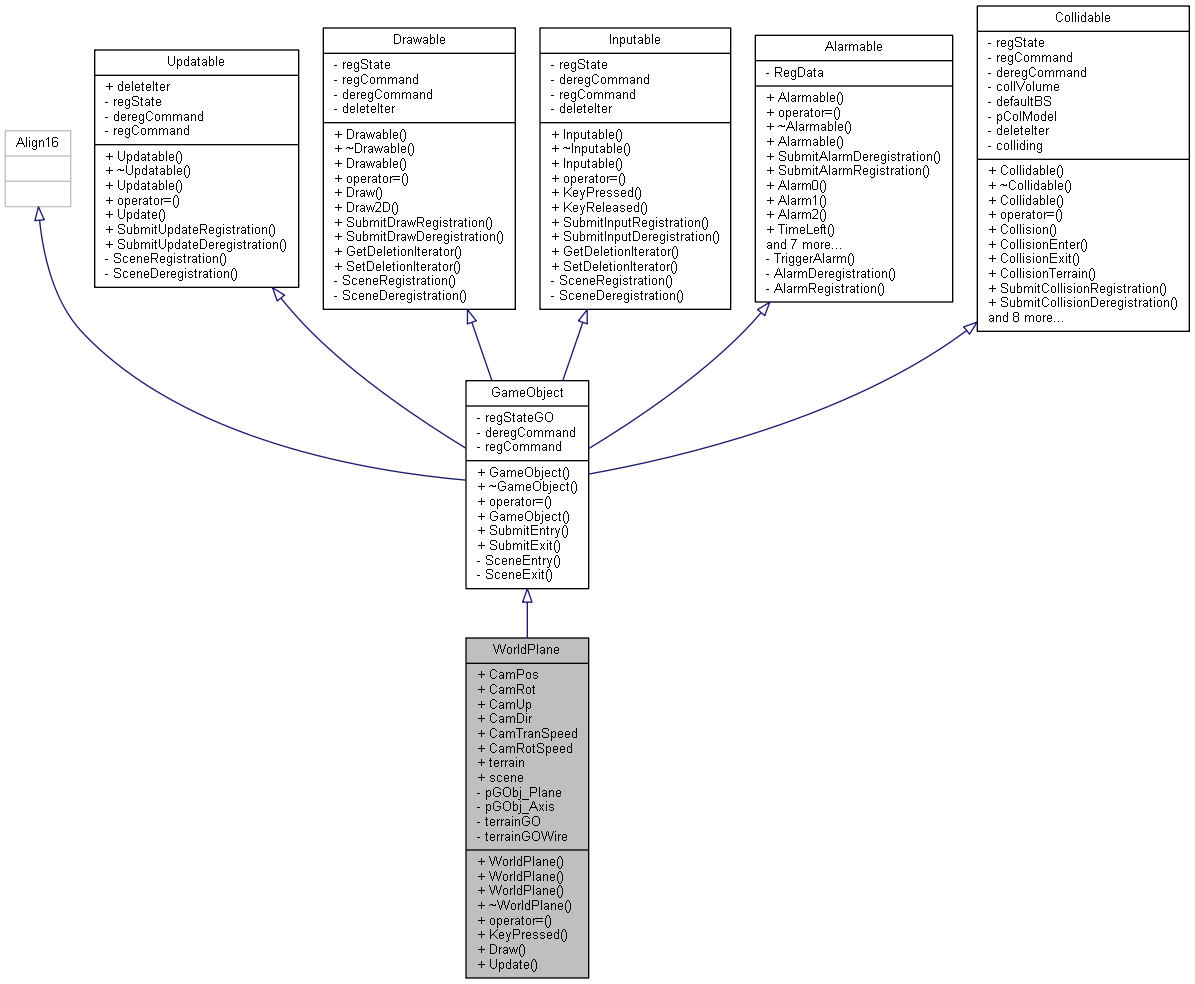

Inheritance diagram for WorldPlane:

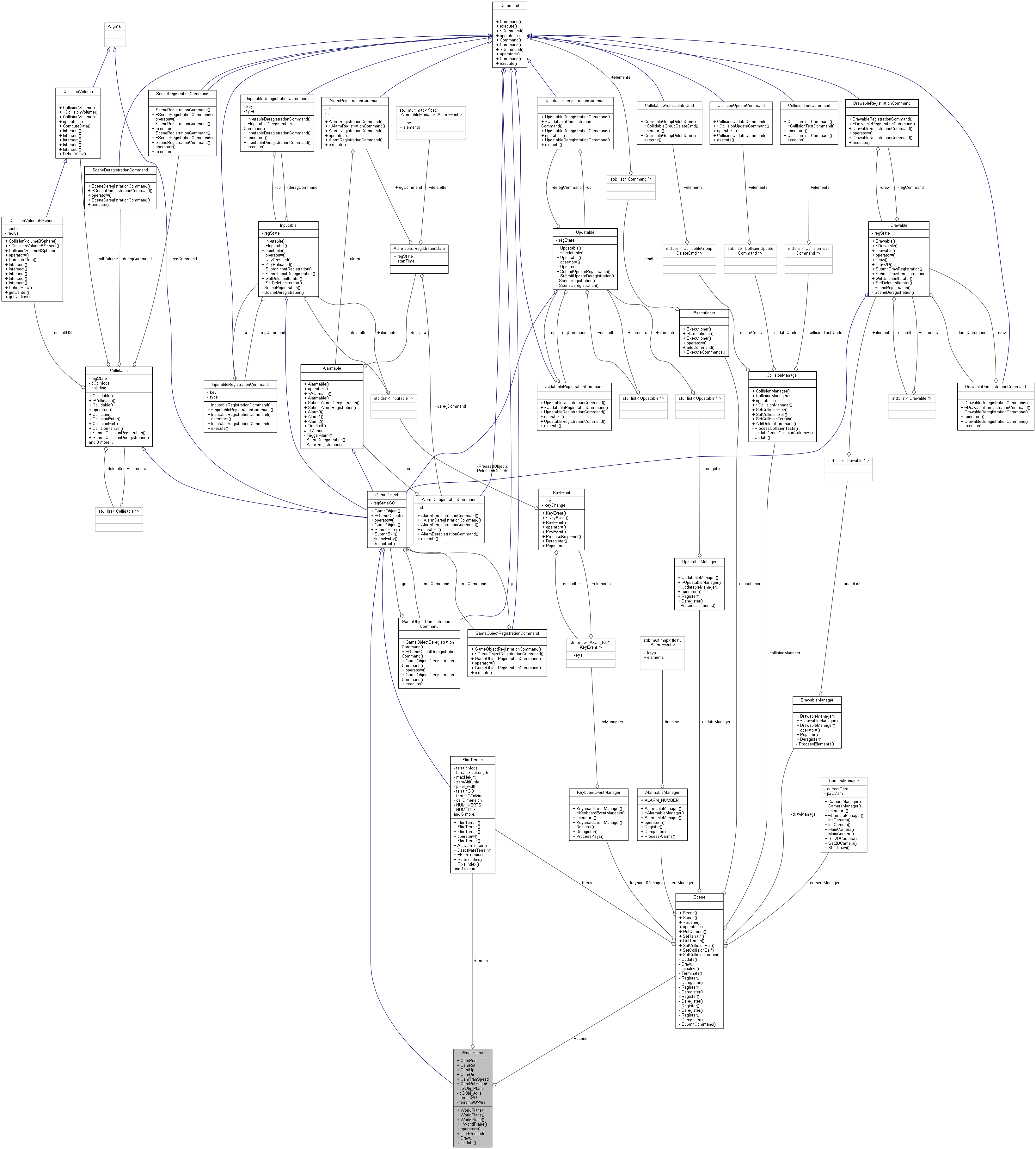

Collaboration diagram for WorldPlane:

Public Member Functions
	WorldPlane ()=delete

	WorldPlane (std::string text, int _x, int _y, int _z, Scene *_scene)

	WorldPlane (const WorldPlane &)=default

	~WorldPlane ()

const WorldPlane &	operator= (const WorldPlane &)

errcode	KeyPressed (AZUL_KEY key) override
	Key pressed callback. More...

virtual errcode	Draw () override
	Draw callback to override. More...

virtual errcode	Update () override
	Called every frame. More...

Public Member Functions inherited from GameObject
	GameObject ()

virtual	~GameObject ()

GameObject &	operator= (const GameObject &)=default

	GameObject (const GameObject &)=default

errcode	SubmitEntry ()
	Submit entry to the scene. More...

errcode	SubmitExit ()
	Submit exit to the scene. More...

Public Member Functions inherited from Updatable
	Updatable ()

virtual	~Updatable ()

	Updatable (const Updatable &)=delete

const Updatable &	operator= (const Updatable &)=delete

errcode	SubmitUpdateRegistration ()
	Submit update registration. More...

errcode	SubmitUpdateDeregistration ()
	Submit update deregistration. More...

Public Member Functions inherited from Drawable
	Drawable ()

virtual	~Drawable ()

	Drawable (const Drawable &)=delete

const Drawable &	operator= (const Drawable &)=delete

virtual errcode	Draw2D ()

errcode	SubmitDrawRegistration ()
	Submit draw registration. More...

errcode	SubmitDrawDeregistration ()
	Submit draw deregistration. More...

std::list< Drawable * >::iterator	GetDeletionIterator ()

errcode	SetDeletionIterator (std::list< Drawable *>::iterator in)

Public Member Functions inherited from Inputable
	Inputable ()

virtual	~Inputable ()

	Inputable (const Inputable &)=delete

const Inputable &	operator= (const Inputable &)=delete

virtual errcode	KeyReleased (AZUL_KEY key)
	Key released. More...

errcode	SubmitInputRegistration (AZUL_KEY key, input_type type)
	Submit input registration. More...

errcode	SubmitInputDeregistration (AZUL_KEY key, input_type type)
	Submit input deregistration. More...

std::list< Inputable * >::iterator	GetDeletionIterator ()

errcode	SetDeletionIterator (std::list< Inputable *>::iterator in)

Public Member Functions inherited from Alarmable
	Alarmable ()

Alarmable &	operator= (const Alarmable &)

virtual	~Alarmable ()

	Alarmable (const Alarmable &)

errcode	SubmitAlarmDeregistration (AlarmableManager::ALARM_ID id)
	Submit alarm deregistration. More...

errcode	SubmitAlarmRegistration (float t, AlarmableManager::ALARM_ID id)
	Submit alarm registration. More...

virtual void	Alarm0 ()
	Alarm 0 callback. More...

virtual void	Alarm1 ()
	Alarm 1 callback. More...

virtual void	Alarm2 ()
	Alarm 2 callback. More...

float	TimeLeft (AlarmableManager::ALARM_ID id)
	Time left on one of the alarms. More...

errcode	ChangeTime (float t, AlarmableManager::ALARM_ID id)
	Change time. More...

errcode	AddTime (float t, AlarmableManager::ALARM_ID id)
	Adds a time to 'id'. More...

errcode	SubtractTime (float t, AlarmableManager::ALARM_ID id)
	Subtract time. More...

bool	IsRegistered (AlarmableManager::ALARM_ID id)
	Query if 'id' is registered. More...

errcode	SetDeletionIter (int alarmNumber, std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator iter)

std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator	GetDeletionIter (int alarmNumber)

errcode	SetRegistrationState (int alarmNumber, RegistrationState state)

Public Member Functions inherited from Collidable
	Collidable ()

virtual	~Collidable ()

	Collidable (const Collidable &)=delete

const Collidable &	operator= (const Collidable &)=delete

virtual errcode	Collision (Collidable *)
	Collision callback. More...

virtual errcode	CollisionEnter (Collidable *)
	Collision enter. More...

virtual errcode	CollisionExit ()
	Collision exit. More...

virtual errcode	CollisionTerrain (const CollisionVolumeAABB &)
	Collision terrain. More...

template<typename C >
errcode	SubmitCollisionRegistration (C *c)
	Submit collision registration of your type. More...

template<typename C >
errcode	SubmitCollisionDeregistration (C *c)
	Submit collision deregistration for your type. More...

const CollisionVolume &	GetCollisionVolume () const

errcode	SetColliderModel (Model *mod, VolumeType vol)
	Sets collider model. More...

errcode	UpdateCollisionData (Matrix &mat)
	Updates the collision data described by matrix. More...

std::list< Collidable * >::iterator	GetDeletionIter ()

errcode	SetDeletionIter (std::list< Collidable *>::iterator in)

bool	getColliding () const

void	setColliding (bool coll)

const CollisionVolumeBSphere &	getBSphere () const

Public Attributes
Vect	CamPos

Matrix	CamRot

Vect	CamUp

Vect	CamDir

float	CamTranSpeed

float	CamRotSpeed

FlimTerrain *	terrain

Scene *	scene

Public Attributes inherited from Updatable
std::list< Updatable * >::iterator	deleteIter

Private Attributes
GraphicsObject_TextureFlat *	pGObj_Plane

GraphicsObject_ColorNoTexture *	pGObj_Axis

GraphicsObject_TextureLight *	terrainGO

GraphicsObject_WireframeConstantColor *	terrainGOWire

Constructor & Destructor Documentation

◆ WorldPlane() [1/3]

WorldPlane::WorldPlane ( )

delete

◆ WorldPlane() [2/3]

WorldPlane::WorldPlane	(	std::string	text,
		int	_x,
		int	_y,
		int	_z,
		Scene *	_scene
	)

◆ WorldPlane() [3/3]

WorldPlane::WorldPlane ( const WorldPlane & )

default

◆ ~WorldPlane()

WorldPlane::~WorldPlane ( )

Member Function Documentation

◆ Draw()

errcode WorldPlane::Draw ( )

overridevirtual

Draw callback to override.

Author: Jack Campbell

Date: 3/5/2017

This will be called once a frame and should only contain code related to rendering.

     errcode Frigate::Draw()
{
    // Place rendering code here.
    // Render ship's graphics object to the current main camera via the Scene
    pGObj_SpaceFrigateLight->Render(&SceneManager::GetCurrentScene().GetCamera()->MainCamera());
    return errcode::success;
}

Returns: An errcode.

Reimplemented from Drawable.

◆ KeyPressed()

errcode WorldPlane::KeyPressed ( AZUL_KEY key )

overridevirtual

Key pressed callback.

Author: Jack Campbell

Date: 3/5/2017

Parameters

key	Hook to check the key.

Place code in this callback if you are registered for a press: event.
errcode Frigate::KeyPressed(AZUL_KEY key)
{
if (key == AZUL_KEY::KEY_SPACE)
{
DebugMsg::out("pressed\n");
}
return errcode::success;
}

Returns: An errcode.

Reimplemented from Inputable.

◆ operator=()

const WorldPlane& WorldPlane::operator= ( const WorldPlane & )

inline

◆ Update()

errcode WorldPlane::Update ( )

overridevirtual

Called every frame.

Author: Jack Campbell

Date: 3/5/2017

Update is called once a frame on objects that have been registered to update.

     errcode Frigate::Update()
{
    // Place frame related content here. This code moves the ship's graphics object.
    // Ship translation movement (not using time-based values for simplicity)
    if (Keyboard::GetKeyState(AZUL_KEY::KEY_W))
    {
        ShipPos += Vect(0, 0, 1) * ShipRot * ShipTransSpeed;
    }
    else if (Keyboard::GetKeyState(AZUL_KEY::KEY_S))
    {
        ShipPos += Vect(0, 0, 1) * ShipRot * -ShipTransSpeed;
    }
    // Spaceship adjust matrix
    Matrix world = ShipScale * ShipRot * Matrix(TRANS, ShipPos);
    pGObj_SpaceFrigateLight->SetWorld(world);
    return errcode::success;
}

Returns: An errcode.

Reimplemented from Updatable.

Member Data Documentation

◆ CamDir

Vect WorldPlane::CamDir

◆ CamPos

Vect WorldPlane::CamPos

◆ CamRot

Matrix WorldPlane::CamRot

◆ CamRotSpeed

float WorldPlane::CamRotSpeed

◆ CamTranSpeed

float WorldPlane::CamTranSpeed

◆ CamUp

Vect WorldPlane::CamUp

◆ pGObj_Axis

GraphicsObject_ColorNoTexture* WorldPlane::pGObj_Axis

private

◆ pGObj_Plane

GraphicsObject_TextureFlat* WorldPlane::pGObj_Plane

private

◆ scene

Scene* WorldPlane::scene

◆ terrain

FlimTerrain* WorldPlane::terrain

◆ terrainGO

GraphicsObject_TextureLight* WorldPlane::terrainGO

private

◆ terrainGOWire

GraphicsObject_WireframeConstantColor* WorldPlane::terrainGOWire

private

The documentation for this class was generated from the following files:
