Alarmable Class Reference

#include <Alarmable.h>

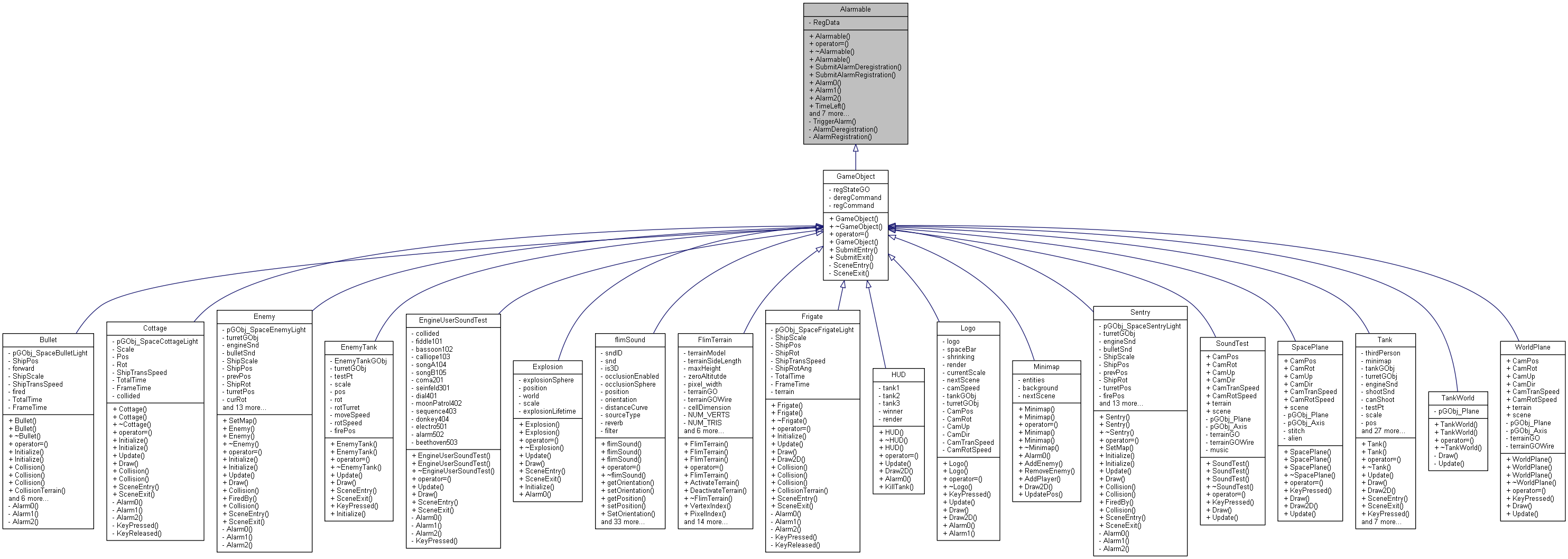

Inheritance diagram for Alarmable:

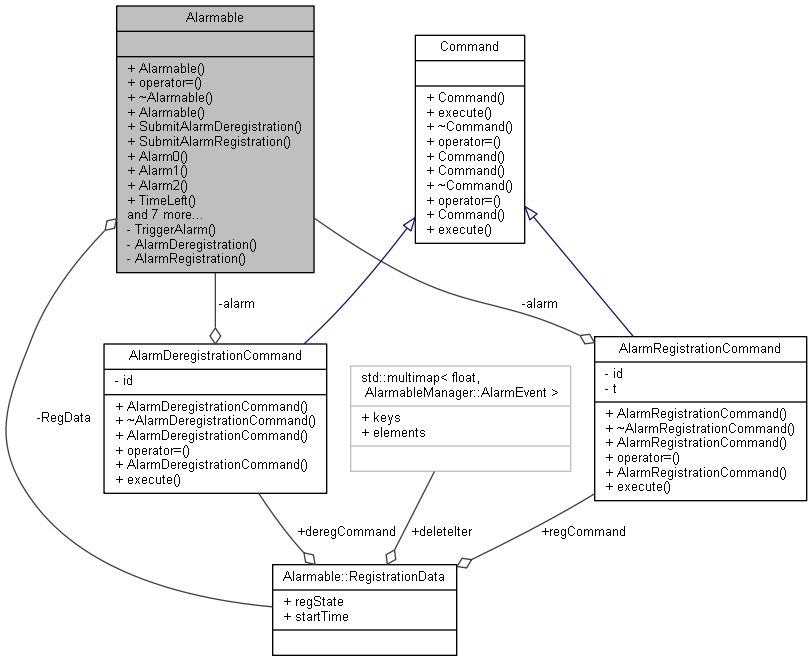

Collaboration diagram for Alarmable:

Classes
struct	RegistrationData

Public Member Functions
	Alarmable ()
Alarmable &	operator= (const Alarmable &)
virtual	~Alarmable ()
	Alarmable (const Alarmable &)
errcode	SubmitAlarmDeregistration (AlarmableManager::ALARM_ID id)
	Submit alarm deregistration. More...
errcode	SubmitAlarmRegistration (float t, AlarmableManager::ALARM_ID id)
	Submit alarm registration. More...
virtual void	Alarm0 ()
	Alarm 0 callback. More...
virtual void	Alarm1 ()
	Alarm 1 callback. More...
virtual void	Alarm2 ()
	Alarm 2 callback. More...
float	TimeLeft (AlarmableManager::ALARM_ID id)
	Time left on one of the alarms. More...
errcode	ChangeTime (float t, AlarmableManager::ALARM_ID id)
	Change time. More...
errcode	AddTime (float t, AlarmableManager::ALARM_ID id)
	Adds a time to 'id'. More...
errcode	SubtractTime (float t, AlarmableManager::ALARM_ID id)
	Subtract time. More...
bool	IsRegistered (AlarmableManager::ALARM_ID id)
	Query if 'id' is registered. More...
errcode	SetDeletionIter (int alarmNumber, std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator iter)
std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator	GetDeletionIter (int alarmNumber)
errcode	SetRegistrationState (int alarmNumber, RegistrationState state)

Private Member Functions
void	TriggerAlarm (AlarmableManager::ALARM_ID id)
errcode	AlarmDeregistration (AlarmableManager::ALARM_ID id)
errcode	AlarmRegistration (float t, AlarmableManager::ALARM_ID id)

Private Attributes
RegistrationData	RegData [AlarmableManager::ALARM_NUMBER]

Friends
class	AlarmRegistrationCommand
class	AlarmDeregistrationCommand
class	AlarmableManager

Constructor & Destructor Documentation

Alarmable() [1/2]

Alarmable::Alarmable

(

)

~Alarmable()

Alarmable::~Alarmable ( )

virtual

Alarmable() [2/2]

Alarmable::Alarmable

(

const Alarmable &

)

Member Function Documentation

AddTime()

errcode Alarmable::AddTime	(	float	t,
		AlarmableManager::ALARM_ID	id
	)

Adds a time to 'id'.

Author

Jack Campbell

Date

3/12/2017

Parameters

t	The float to process.
id	The identifier.

Returns errcode::failure if id is not registered. Otherwise deregisters the alarm and registers with the time left plus the added time

// ALARM_0 was set to fire in 10,000 milliseconds
 // I want to reset ALARM_0 and make it fire in 11,000 milliseconds
 AddTime(1000.0f, AlarmableManager::ALARM_0);

Returns

An errcode.

AlarmDeregistration()

errcode Alarmable::AlarmDeregistration ( AlarmableManager::ALARM_ID  id )

private

AlarmRegistration()

errcode Alarmable::AlarmRegistration ( float  t, AlarmableManager::ALARM_ID  id  )

private

ChangeTime()

errcode Alarmable::ChangeTime	(	float	t,
		AlarmableManager::ALARM_ID	id
	)

Change time.

Author

Jack Campbell

Date

3/12/2017

Parameters

t	The float to process.
id	The identifier.

Returns errcode::failure if id is not registered. Otherwise deregisters the alarm and registers with the new time.

// I want to reset ALARM_0 and make it fire in 1000 milliseconds
ChangeTime(1000.0f, AlarmableManager::ALARM_0);

Returns

An errcode.

GetDeletionIter()

std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator Alarmable::GetDeletionIter

(

int

alarmNumber

)

IsRegistered()

bool Alarmable::IsRegistered

(

AlarmableManager::ALARM_ID

id

)

Query if 'id' is registered.

Author

Jack Campbell

Date

3/12/2017

Parameters

id	The alarm check.

Returns whether the alarm at the ID is currently set to fire or not.

Returns

True if registered, false if not.

operator=()

Alarmable& Alarmable::operator=

(

const Alarmable &

)

SetDeletionIter()

errcode Alarmable::SetDeletionIter	(	int	alarmNumber,
		std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator	iter
	)

SetRegistrationState()

errcode Alarmable::SetRegistrationState	(	int	alarmNumber,
		RegistrationState	state
	)

SubtractTime()

errcode Alarmable::SubtractTime	(	float	t,
		AlarmableManager::ALARM_ID	id
	)

Subtract time.

Author

Jack Campbell

Date

3/12/2017

Parameters

t	The float to process.
id	The identifier.

Returns errcode::failure if id is not registered. Otherwise deregisters the alarm and registers with the time left minues the subtracted time

// ALARM_0 was set to fire in 10,000 milliseconds
 // I want to reset ALARM_0 and make it fire in 9,000 milliseconds
 SubtractTime(1000.0f, AlarmableManager::ALARM_0);

Returns

An errcode.

TimeLeft()

float Alarmable::TimeLeft

(

AlarmableManager::ALARM_ID

id

)

Time left on one of the alarms.

Author

Jack Campbell

Date

3/12/2017

Parameters

id	The identifier.

You can use this method to query how much time remains on a registered alarm. Calling this on a deregistered alarm returns 0.

float timeLeftOnAlarm0 = TimeLeft(AlarmableManager::ALARM_0);

Returns

A float.

TriggerAlarm()

void Alarmable::TriggerAlarm ( AlarmableManager::ALARM_ID  id )

private

Friends And Related Function Documentation

AlarmableManager

friend class AlarmableManager

friend

AlarmDeregistrationCommand

friend class AlarmDeregistrationCommand

friend

AlarmRegistrationCommand

friend class AlarmRegistrationCommand

friend

Member Data Documentation

RegData

RegistrationData Alarmable::RegData[AlarmableManager::ALARM_NUMBER]

private

---

The documentation for this class was generated from the following files:

• Alarmable.h
• Alarmable.cpp
