#include <Frigate.h>

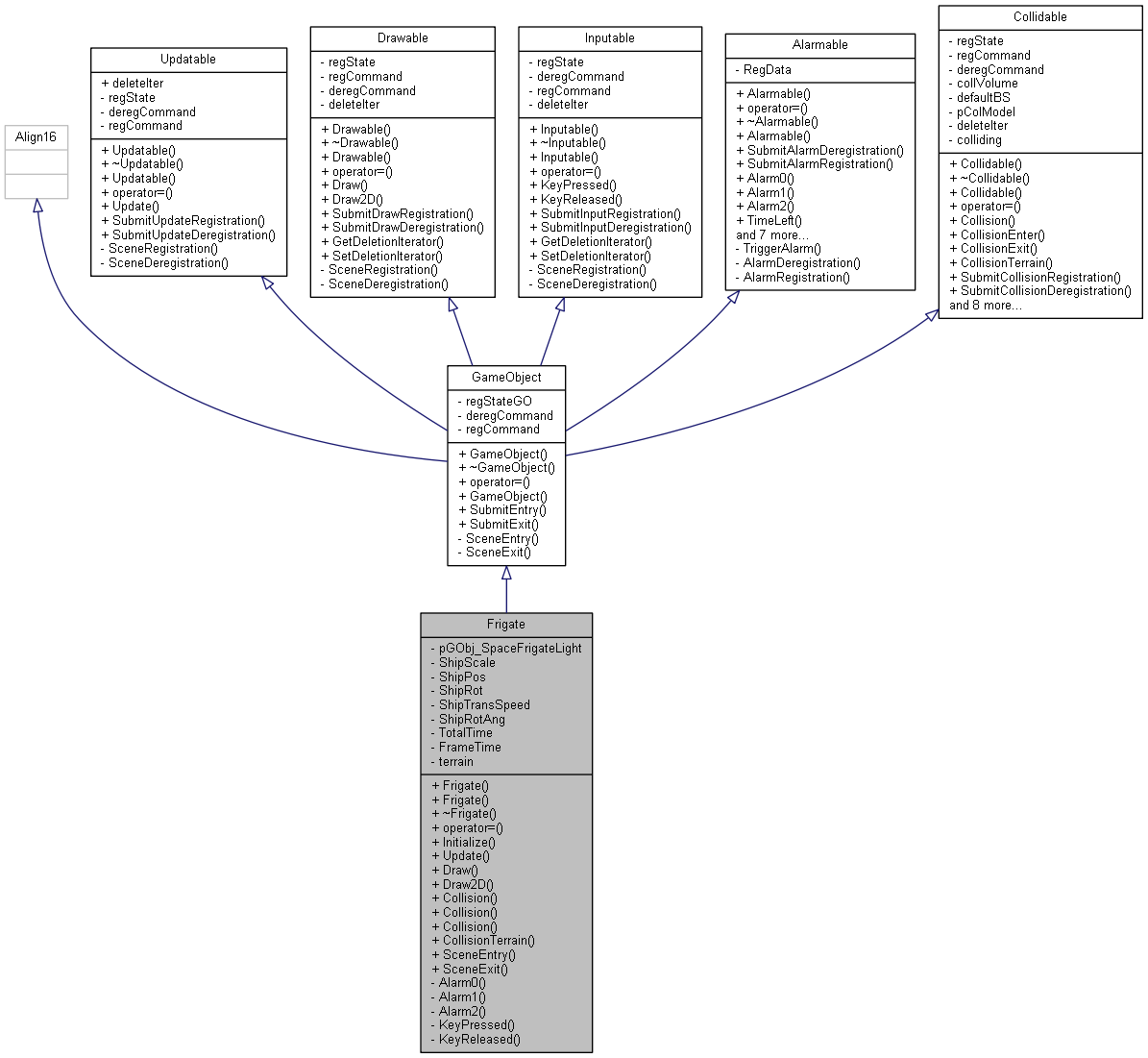

Inheritance diagram for Frigate:

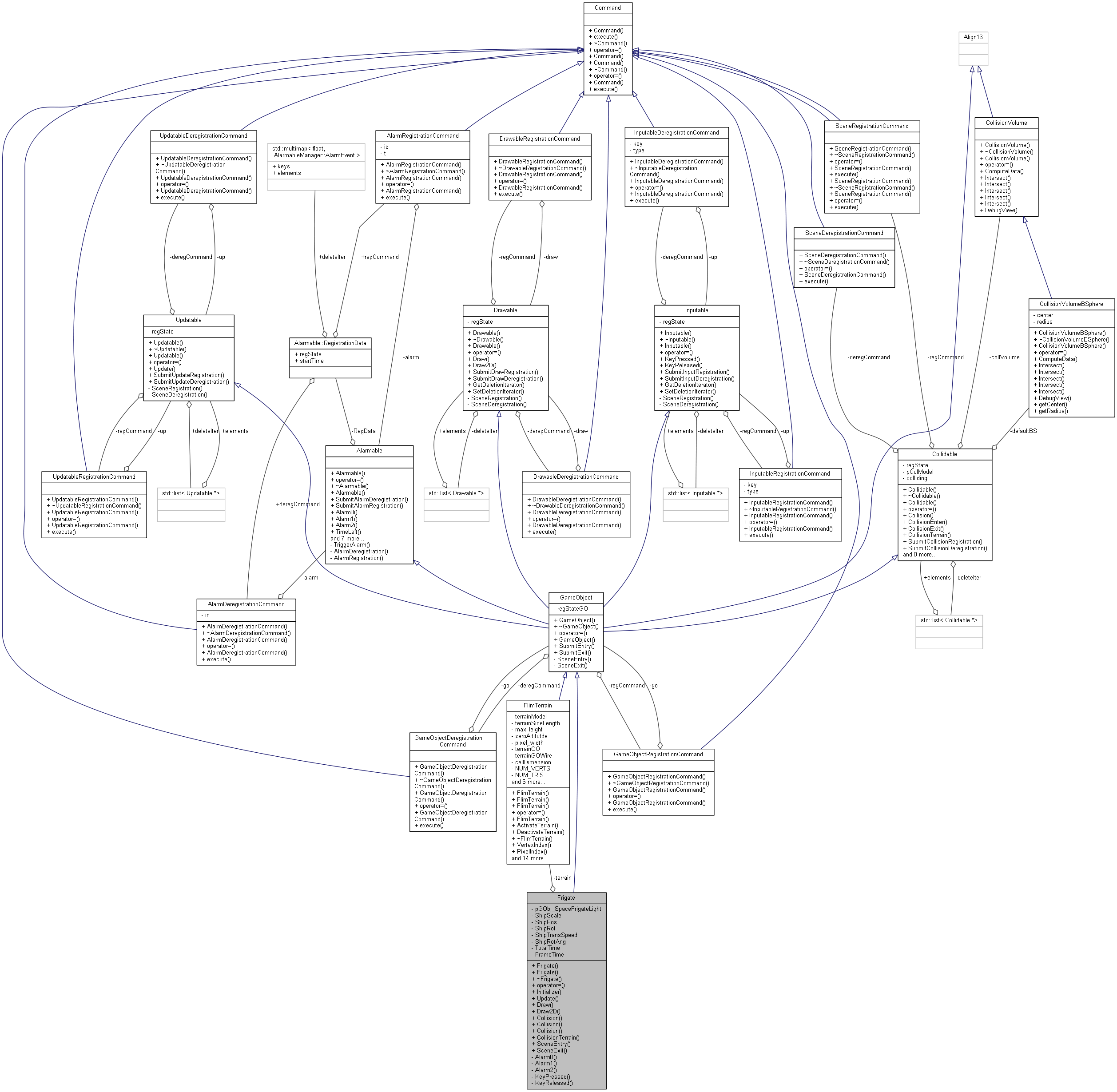

Collaboration diagram for Frigate:

Public Member Functions
	Frigate ()

	Frigate (const Frigate &)

virtual	~Frigate ()

const Frigate &	operator= (const Frigate &)

void	Initialize (int x, int y, int z)

virtual errcode	Update () override
	Called every frame. More...

virtual errcode	Draw () override
	Draw callback to override. More...

virtual errcode	Draw2D () override

virtual errcode	Collision (Frigate *)

virtual errcode	Collision (Cottage *)

virtual errcode	Collision (Enemy *)

virtual errcode	CollisionTerrain (const CollisionVolumeAABB &) override
	Collision terrain. More...

errcode	SceneEntry () override
	Scene entry callback. More...

errcode	SceneExit () override
	Scene exit callback. More...

Public Member Functions inherited from GameObject
	GameObject ()

virtual	~GameObject ()

GameObject &	operator= (const GameObject &)=default

	GameObject (const GameObject &)=default

errcode	SubmitEntry ()
	Submit entry to the scene. More...

errcode	SubmitExit ()
	Submit exit to the scene. More...

Public Member Functions inherited from Updatable
	Updatable ()

virtual	~Updatable ()

	Updatable (const Updatable &)=delete

const Updatable &	operator= (const Updatable &)=delete

errcode	SubmitUpdateRegistration ()
	Submit update registration. More...

errcode	SubmitUpdateDeregistration ()
	Submit update deregistration. More...

Public Member Functions inherited from Drawable
	Drawable ()

virtual	~Drawable ()

	Drawable (const Drawable &)=delete

const Drawable &	operator= (const Drawable &)=delete

errcode	SubmitDrawRegistration ()
	Submit draw registration. More...

errcode	SubmitDrawDeregistration ()
	Submit draw deregistration. More...

std::list< Drawable * >::iterator	GetDeletionIterator ()

errcode	SetDeletionIterator (std::list< Drawable *>::iterator in)

Public Member Functions inherited from Inputable
	Inputable ()

virtual	~Inputable ()

	Inputable (const Inputable &)=delete

const Inputable &	operator= (const Inputable &)=delete

errcode	SubmitInputRegistration (AZUL_KEY key, input_type type)
	Submit input registration. More...

errcode	SubmitInputDeregistration (AZUL_KEY key, input_type type)
	Submit input deregistration. More...

std::list< Inputable * >::iterator	GetDeletionIterator ()

errcode	SetDeletionIterator (std::list< Inputable *>::iterator in)

Public Member Functions inherited from Alarmable
	Alarmable ()

Alarmable &	operator= (const Alarmable &)

virtual	~Alarmable ()

	Alarmable (const Alarmable &)

errcode	SubmitAlarmDeregistration (AlarmableManager::ALARM_ID id)
	Submit alarm deregistration. More...

errcode	SubmitAlarmRegistration (float t, AlarmableManager::ALARM_ID id)
	Submit alarm registration. More...

float	TimeLeft (AlarmableManager::ALARM_ID id)
	Time left on one of the alarms. More...

errcode	ChangeTime (float t, AlarmableManager::ALARM_ID id)
	Change time. More...

errcode	AddTime (float t, AlarmableManager::ALARM_ID id)
	Adds a time to 'id'. More...

errcode	SubtractTime (float t, AlarmableManager::ALARM_ID id)
	Subtract time. More...

bool	IsRegistered (AlarmableManager::ALARM_ID id)
	Query if 'id' is registered. More...

errcode	SetDeletionIter (int alarmNumber, std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator iter)

std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator	GetDeletionIter (int alarmNumber)

errcode	SetRegistrationState (int alarmNumber, RegistrationState state)

Public Member Functions inherited from Collidable
	Collidable ()

virtual	~Collidable ()

	Collidable (const Collidable &)=delete

const Collidable &	operator= (const Collidable &)=delete

virtual errcode	Collision (Collidable *)
	Collision callback. More...

virtual errcode	CollisionEnter (Collidable *)
	Collision enter. More...

virtual errcode	CollisionExit ()
	Collision exit. More...

template<typename C >
errcode	SubmitCollisionRegistration (C *c)
	Submit collision registration of your type. More...

template<typename C >
errcode	SubmitCollisionDeregistration (C *c)
	Submit collision deregistration for your type. More...

const CollisionVolume &	GetCollisionVolume () const

errcode	SetColliderModel (Model *mod, VolumeType vol)
	Sets collider model. More...

errcode	UpdateCollisionData (Matrix &mat)
	Updates the collision data described by matrix. More...

std::list< Collidable * >::iterator	GetDeletionIter ()

errcode	SetDeletionIter (std::list< Collidable *>::iterator in)

bool	getColliding () const

void	setColliding (bool coll)

const CollisionVolumeBSphere &	getBSphere () const

Private Member Functions
void	Alarm0 () override
	Alarm 0 callback. More...

void	Alarm1 () override
	Alarm 1 callback. More...

void	Alarm2 () override
	Alarm 2 callback. More...

errcode	KeyPressed (AZUL_KEY key) override
	Key pressed callback. More...

errcode	KeyReleased (AZUL_KEY key) override
	Key released. More...

Private Attributes
GraphicsObject_TextureLight *	pGObj_SpaceFrigateLight

Matrix	ShipScale

Vect	ShipPos

Matrix	ShipRot

const float	ShipTransSpeed = 2.5f

const float	ShipRotAng = .05f

float	TotalTime

float	FrameTime

FlimTerrain *	terrain

Additional Inherited Members
Public Attributes inherited from Updatable
std::list< Updatable * >::iterator	deleteIter

Constructor & Destructor Documentation

◆ Frigate() [1/2]

Frigate::Frigate ( )

◆ Frigate() [2/2]

Frigate::Frigate ( const Frigate & )

inline

◆ ~Frigate()

Frigate::~Frigate ( )

virtual

Member Function Documentation

◆ Alarm0()

void Frigate::Alarm0 ( )

overrideprivatevirtual

Alarm 0 callback.

Author: Jack Campbell

Date: 3/5/2017

Callback for alarms

void Frigate::Alarm0()
{
    DebugMsg::out("\n\nFIRST FRIGATE ALARMED\n\n");
}
void Frigate::Alarm1()
{
    DebugMsg::out("\n\nSECOND FRIGATE ALARMED\n\n");
}
void Frigate::Alarm2()
{
    DebugMsg::out("\n\nTHIRD FRIGATE ALARMED\n\n\n");
}

Reimplemented from Alarmable.

◆ Alarm1()

void Frigate::Alarm1 ( )

overrideprivatevirtual

Alarm 1 callback.

Author: Jack Campbell

Date: 3/5/2017

see alarm0

Reimplemented from Alarmable.

◆ Alarm2()

void Frigate::Alarm2 ( )

overrideprivatevirtual

Alarm 2 callback.

Author: Jack Campbell

Date: 3/5/2017

see alarm0

Reimplemented from Alarmable.

◆ Collision() [1/3]

virtual errcode Frigate::Collision ( Frigate * )

inlinevirtual

◆ Collision() [2/3]

virtual errcode Frigate::Collision ( Cottage * )

inlinevirtual

◆ Collision() [3/3]

virtual errcode Frigate::Collision ( Enemy * )

inlinevirtual

◆ CollisionTerrain()

virtual errcode Frigate::CollisionTerrain ( const CollisionVolumeAABB & )

inlineoverridevirtual

Collision terrain.

Author: Jack Campbell

Date: 6/1/2017

Parameters

parameter1 The first parameter.

Returns: An errcode.

Reimplemented from Collidable.

◆ Draw()

errcode Frigate::Draw ( )

overridevirtual

Draw callback to override.

Author: Jack Campbell

Date: 3/5/2017

This will be called once a frame and should only contain code related to rendering.

     errcode Frigate::Draw()
{
    // Place rendering code here.
    // Render ship's graphics object to the current main camera via the Scene
    pGObj_SpaceFrigateLight->Render(&SceneManager::GetCurrentScene().GetCamera()->MainCamera());
    return errcode::success;
}

Returns: An errcode.

Reimplemented from Drawable.

◆ Draw2D()

errcode Frigate::Draw2D ( )

overridevirtual

Reimplemented from Drawable.

◆ Initialize()

void Frigate::Initialize	(	int	x,
		int	y,
		int	z
	)

◆ KeyPressed()

errcode Frigate::KeyPressed ( AZUL_KEY key )

overrideprivatevirtual

Key pressed callback.

Author: Jack Campbell

Date: 3/5/2017

Parameters

key	Hook to check the key.

Place code in this callback if you are registered for a press: event.
errcode Frigate::KeyPressed(AZUL_KEY key)
{
if (key == AZUL_KEY::KEY_SPACE)
{
DebugMsg::out("pressed\n");
}
return errcode::success;
}

Returns: An errcode.

Reimplemented from Inputable.

◆ KeyReleased()

errcode Frigate::KeyReleased ( AZUL_KEY key )

overrideprivatevirtual

Key released.

Author: Jack Campbell

Date: 3/5/2017

Parameters

key	Hook to check the key.

Place code in this callback if you are registered for a release event.: errcode Frigate::KeyReleased(AZUL_KEY key)
{
if (key == AZUL_KEY::KEY_SPACE)
{
DebugMsg::out("released\n");
}
return errcode::success;
}

Returns: An errcode.

Reimplemented from Inputable.

◆ operator=()

const Frigate& Frigate::operator= ( const Frigate & )

inline

◆ SceneEntry()

errcode Frigate::SceneEntry ( )

overridevirtual

Scene entry callback.

Author: Jack Campbell

Date: 3/5/2017

This callback fires when a GameObject becomes active.

 errcode Frigate::SceneEntry()
{
    // Registration
    SubmitUpdateRegistration();
    SubmitDrawRegistration();
    // Setting graphics member variables
    Matrix world;
    ShipPos.set(0, 20, 0);
    world = Matrix(TRANS, ShipPos);
    pGObj_SpaceFrigateLight->SetWorld(world);
    return errcode::success;
}

Returns: An errcode.

Reimplemented from GameObject.

◆ SceneExit()

errcode Frigate::SceneExit ( )

overridevirtual

Scene exit callback.

Author: Jack Campbell

Date: 3/5/2017

This callback is called when a GameObject is deactivated.

 errcode Frigate::SceneExit()
{
    // Deregistration
    SubmitUpdateDeregistration();
    SubmitDrawDeregistration();
    return errcode::success;
}

Returns: An errcode.

Reimplemented from GameObject.

◆ Update()

errcode Frigate::Update ( )

overridevirtual

Called every frame.

Author: Jack Campbell

Date: 3/5/2017

Update is called once a frame on objects that have been registered to update.

     errcode Frigate::Update()
{
    // Place frame related content here. This code moves the ship's graphics object.
    // Ship translation movement (not using time-based values for simplicity)
    if (Keyboard::GetKeyState(AZUL_KEY::KEY_W))
    {
        ShipPos += Vect(0, 0, 1) * ShipRot * ShipTransSpeed;
    }
    else if (Keyboard::GetKeyState(AZUL_KEY::KEY_S))
    {
        ShipPos += Vect(0, 0, 1) * ShipRot * -ShipTransSpeed;
    }
    // Spaceship adjust matrix
    Matrix world = ShipScale * ShipRot * Matrix(TRANS, ShipPos);
    pGObj_SpaceFrigateLight->SetWorld(world);
    return errcode::success;
}

Returns: An errcode.

Reimplemented from Updatable.

Member Data Documentation

◆ FrameTime

float Frigate::FrameTime

private

◆ pGObj_SpaceFrigateLight

GraphicsObject_TextureLight* Frigate::pGObj_SpaceFrigateLight

private

◆ ShipPos

Vect Frigate::ShipPos

private

◆ ShipRot

Matrix Frigate::ShipRot

private

◆ ShipRotAng

const float Frigate::ShipRotAng = .05f

private

◆ ShipScale

Matrix Frigate::ShipScale

private

◆ ShipTransSpeed

const float Frigate::ShipTransSpeed = 2.5f

private

◆ terrain

FlimTerrain* Frigate::terrain

private

◆ TotalTime

float Frigate::TotalTime

private

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ Frigate() [1/2]

◆ Frigate() [2/2]

◆ ~Frigate()

Member Function Documentation

◆ Alarm0()

◆ Alarm1()

◆ Alarm2()

◆ Collision() [1/3]

◆ Collision() [2/3]

◆ Collision() [3/3]

◆ CollisionTerrain()

◆ Draw()

◆ Draw2D()

◆ Initialize()

◆ KeyPressed()

◆ KeyReleased()

◆ operator=()

◆ SceneEntry()

◆ SceneExit()

◆ Update()

Member Data Documentation

◆ FrameTime

◆ pGObj_SpaceFrigateLight

◆ ShipPos

◆ ShipRot

◆ ShipRotAng

◆ ShipScale

◆ ShipTransSpeed

◆ terrain

◆ TotalTime
