CollisionVolumeAABB Class Reference

#include <CollisionVolumeAABB.h>

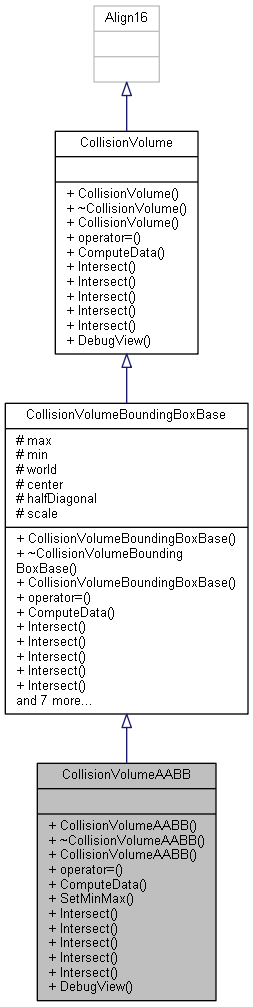

Inheritance diagram for CollisionVolumeAABB:
Inheritance graph
Collaboration diagram for CollisionVolumeAABB:
Collaboration graph

Public Member Functions

 CollisionVolumeAABB ()

 ~CollisionVolumeAABB ()

 CollisionVolumeAABB (const CollisionVolumeAABB &)=default

CollisionVolumeAABB & operator= (const CollisionVolumeAABB &)=default

errcode ComputeData (Model *, Matrix &) override
 Calculates the collision data based on a model and its world matrix. More...

errcode SetMinMax (const Vect &min, const Vect &max)

bool Intersect (const CollisionVolume &) const override

bool Intersect (const CollisionVolumeAABB &) const override

bool Intersect (const CollisionVolumeOBB &) const override
 Intersects the given other. More...

bool Intersect (const CollisionVolumeBSphere &) const override

bool Intersect (const CollisionVolumeOcclusionLine &) const override
 Intersects the given parameter 1. More...

errcode DebugView (const Vect &) const override
 Debug view. More...

- Public Member Functions inherited from CollisionVolumeBoundingBoxBase
 CollisionVolumeBoundingBoxBase ()=default

virtual ~CollisionVolumeBoundingBoxBase ()

 CollisionVolumeBoundingBoxBase (const CollisionVolumeBoundingBoxBase &)=default

CollisionVolumeBoundingBoxBase & operator= (const CollisionVolumeBoundingBoxBase &)=default

const Vect & getMin () const

const Vect & getMax () const

const Matrix & getWorld () const

const Vect & getHalfDiagonal () const

float getScaleSquared () const

const Vect & getCenter () const

- Public Member Functions inherited from CollisionVolume
 CollisionVolume ()=default

virtual ~CollisionVolume ()

 CollisionVolume (const CollisionVolume &)=default

CollisionVolume & operator= (const CollisionVolume &)=default


Additional Inherited Members

- Protected Attributes inherited from CollisionVolumeBoundingBoxBase
Vect max

Vect min

Matrix world

Vect center

Vect halfDiagonal

float scale


Constructor & Destructor Documentation

◆ CollisionVolumeAABB() [1/2]

CollisionVolumeAABB::CollisionVolumeAABB ( )

◆ ~CollisionVolumeAABB()

CollisionVolumeAABB::~CollisionVolumeAABB ( )
inline

◆ CollisionVolumeAABB() [2/2]

CollisionVolumeAABB::CollisionVolumeAABB ( const CollisionVolumeAABB &  )
default

Member Function Documentation

◆ ComputeData()

errcode CollisionVolumeAABB::ComputeData ( Model *  mod,
Matrix &  mat
)
overridevirtual

Calculates the collision data based on a model and its world matrix.

Author
Jack Campbell
Date
3/5/2017
Parameters
[in,out]modIf non-null, the modifier.
[in,out]matThe matrix.
Returns
The calculated data.

Implements CollisionVolumeBoundingBoxBase.

◆ DebugView()

errcode CollisionVolumeAABB::DebugView ( const Vect &  col) const
overridevirtual

Debug view.

Author
Jack Campbell
Date
4/7/2017
Parameters
colThe col.
Returns
An errcode.

Implements CollisionVolumeBoundingBoxBase.

◆ Intersect() [1/5]

bool CollisionVolumeAABB::Intersect ( const CollisionVolume &  other) const
overridevirtual

Implements CollisionVolumeBoundingBoxBase.

◆ Intersect() [2/5]

bool CollisionVolumeAABB::Intersect ( const CollisionVolumeAABB &  other) const
overridevirtual

Implements CollisionVolumeBoundingBoxBase.

◆ Intersect() [3/5]

bool CollisionVolumeAABB::Intersect ( const CollisionVolumeOBB &  other) const
overridevirtual

Intersects the given other.

Author
Jack Campbell
Date
4/15/2017
Parameters
otherThe other.
Returns
True if it succeeds, false if it fails.

Implements CollisionVolumeBoundingBoxBase.

◆ Intersect() [4/5]

bool CollisionVolumeAABB::Intersect ( const CollisionVolumeBSphere &  other) const
overridevirtual

Implements CollisionVolumeBoundingBoxBase.

◆ Intersect() [5/5]

bool CollisionVolumeAABB::Intersect ( const CollisionVolumeOcclusionLine &  ) const
overridevirtual

Intersects the given parameter 1.

Author
Jack Campbell
Date
5/3/2017
Parameters
parameter1The first parameter.
Returns
True if it succeeds, false if it fails.

Implements CollisionVolumeBoundingBoxBase.

◆ operator=()

CollisionVolumeAABB& CollisionVolumeAABB::operator= ( const CollisionVolumeAABB &  )
default

◆ SetMinMax()

errcode CollisionVolumeAABB::SetMinMax ( const Vect &  min,
const Vect &  max
)
The documentation for this class was generated from the following files:
