#include <AlarmableManager.h>

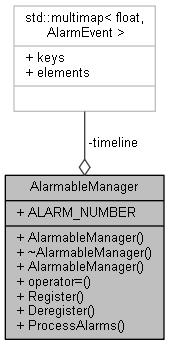

Collaboration diagram for AlarmableManager:

Public Types
enum	ALARM_ID { ALARM_0, ALARM_1, ALARM_2 }
	Values that represent alarm Identifiers. More...

Public Member Functions
	AlarmableManager ()

	~AlarmableManager ()

	AlarmableManager (const AlarmableManager &)=delete

AlarmableManager &	operator= (const AlarmableManager &)=delete

errcode	Register (float t, Alarmable *in, AlarmableManager::ALARM_ID id)
	Registers the alarm to go off after t milliseconds. More...

errcode	Deregister (Alarmable *in, AlarmableManager::ALARM_ID id)
	Deregisters the alarmable per one ID. More...

errcode	ProcessAlarms ()
	Process the alarms. More...

Static Public Attributes
static const int	ALARM_NUMBER = 3
	The alarm number. More...

Private Types
using	AlarmEvent = std::pair< Alarmable *, ALARM_ID >

Private Attributes
std::multimap< float, AlarmEvent >	timeline

Friends
class	Alarmable

Member Typedef Documentation

◆ AlarmEvent

using AlarmableManager::AlarmEvent = std::pair<Alarmable*, ALARM_ID>

private

Member Enumeration Documentation

◆ ALARM_ID

enum AlarmableManager::ALARM_ID

Values that represent alarm Identifiers.

Enumerator
ALARM_0
ALARM_1
ALARM_2

Constructor & Destructor Documentation

◆ AlarmableManager() [1/2]

AlarmableManager::AlarmableManager ( )

◆ ~AlarmableManager()

AlarmableManager::~AlarmableManager ( )

inline

◆ AlarmableManager() [2/2]

AlarmableManager::AlarmableManager ( const AlarmableManager & )

delete

Member Function Documentation

◆ Deregister()

errcode AlarmableManager::Deregister	(	Alarmable *	in,
		AlarmableManager::ALARM_ID	id
	)

Deregisters the alarmable per one ID.

Author: Jack Campbell

Date: 3/5/2017

Parameters

[in,out]	in	If non-null, the alarmable.
	id	The ID of the alarm to deregister

Returns: An errcode.

◆ operator=()

AlarmableManager& AlarmableManager::operator= ( const AlarmableManager & )

delete

◆ ProcessAlarms()

errcode AlarmableManager::ProcessAlarms ( )

Process the alarms.

Author: Jack Campbell

Date: 3/5/2017

Returns: An errcode.

◆ Register()

errcode AlarmableManager::Register	(	float	t,
		Alarmable *	in,
		AlarmableManager::ALARM_ID	id
	)

Registers the alarm to go off after t milliseconds.

Author: Jack Campbell

Date: 3/5/2017

Parameters

	t	The amount of time to register the alarm to
[in,out]	in	If non-null, the alarmable.
	id	The ID of the alarm to register

Returns: An errcode.

Friends And Related Function Documentation

◆ Alarmable

friend class Alarmable

friend

Member Data Documentation

◆ ALARM_NUMBER

const int AlarmableManager::ALARM_NUMBER = 3

static

The alarm number.

◆ timeline

std::multimap<float, AlarmEvent> AlarmableManager::timeline
