GameObject Class Reference

#include <GameObject.h>

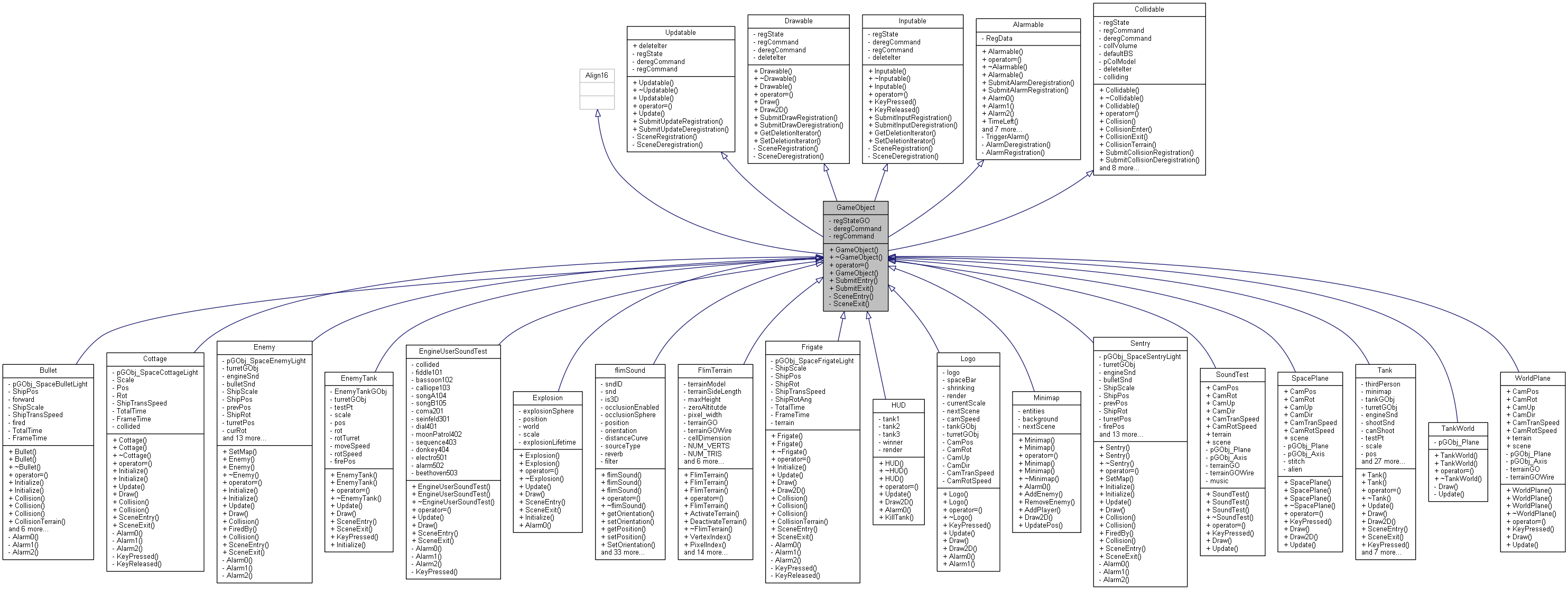

Inheritance diagram for GameObject:

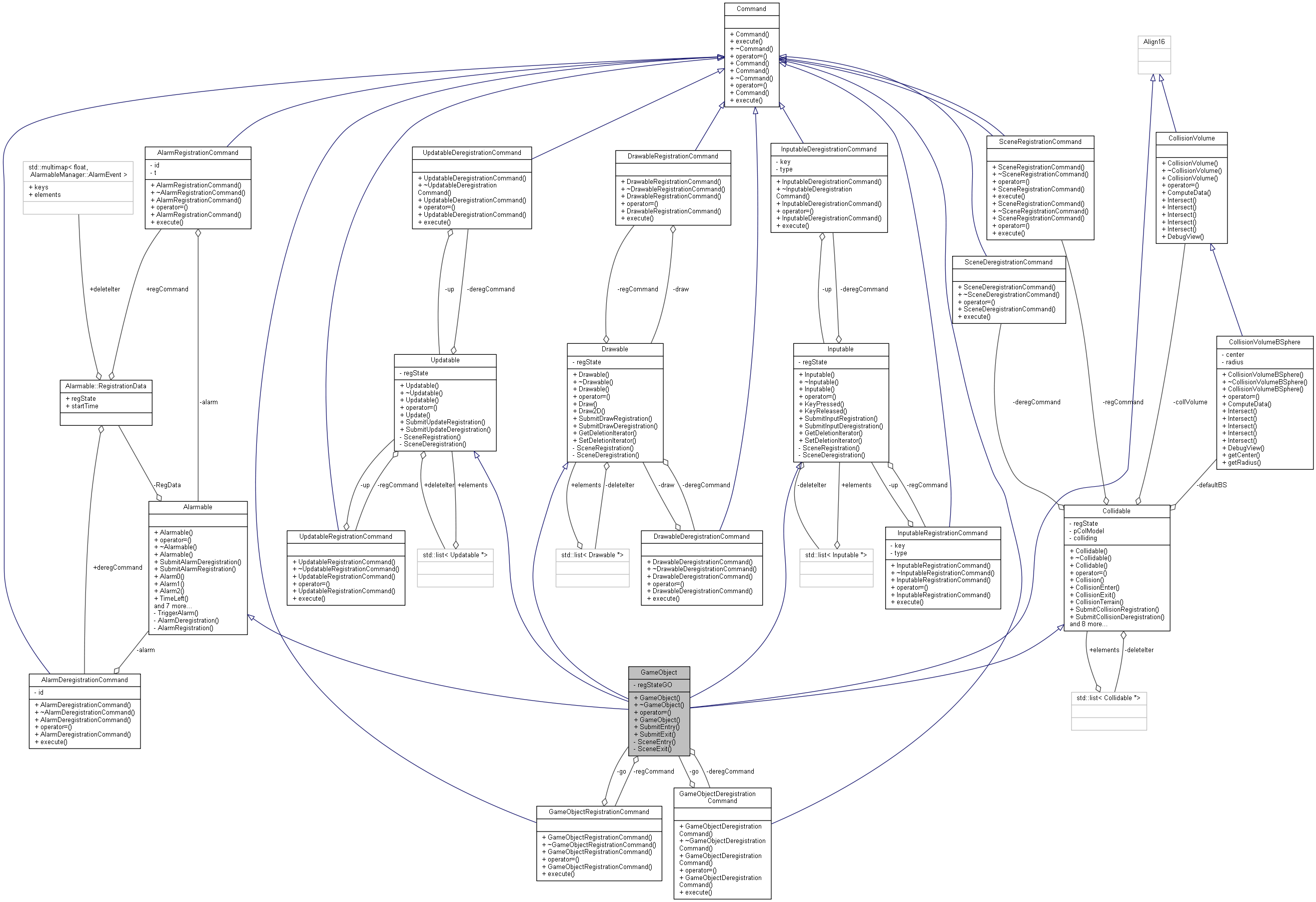

Collaboration diagram for GameObject:

Public Member Functions
	GameObject ()
virtual	~GameObject ()
GameObject &	operator= (const GameObject &)=default
	GameObject (const GameObject &)=default
errcode	SubmitEntry ()
	Submit entry to the scene. More...
errcode	SubmitExit ()
	Submit exit to the scene. More...
Public Member Functions inherited from Updatable
	Updatable ()
virtual	~Updatable ()
	Updatable (const Updatable &)=delete
const Updatable &	operator= (const Updatable &)=delete
virtual errcode	Update ()
	Called every frame. More...
errcode	SubmitUpdateRegistration ()
	Submit update registration. More...
errcode	SubmitUpdateDeregistration ()
	Submit update deregistration. More...
Public Member Functions inherited from Drawable
	Drawable ()
virtual	~Drawable ()
	Drawable (const Drawable &)=delete
const Drawable &	operator= (const Drawable &)=delete
virtual errcode	Draw ()
	Draw callback to override. More...
virtual errcode	Draw2D ()
errcode	SubmitDrawRegistration ()
	Submit draw registration. More...
errcode	SubmitDrawDeregistration ()
	Submit draw deregistration. More...
std::list< Drawable * >::iterator	GetDeletionIterator ()
errcode	SetDeletionIterator (std::list< Drawable *>::iterator in)
Public Member Functions inherited from Inputable
	Inputable ()
virtual	~Inputable ()
	Inputable (const Inputable &)=delete
const Inputable &	operator= (const Inputable &)=delete
virtual errcode	KeyPressed (AZUL_KEY key)
	Key pressed callback. More...
virtual errcode	KeyReleased (AZUL_KEY key)
	Key released. More...
errcode	SubmitInputRegistration (AZUL_KEY key, input_type type)
	Submit input registration. More...
errcode	SubmitInputDeregistration (AZUL_KEY key, input_type type)
	Submit input deregistration. More...
std::list< Inputable * >::iterator	GetDeletionIterator ()
errcode	SetDeletionIterator (std::list< Inputable *>::iterator in)
Public Member Functions inherited from Alarmable
	Alarmable ()
Alarmable &	operator= (const Alarmable &)
virtual	~Alarmable ()
	Alarmable (const Alarmable &)
errcode	SubmitAlarmDeregistration (AlarmableManager::ALARM_ID id)
	Submit alarm deregistration. More...
errcode	SubmitAlarmRegistration (float t, AlarmableManager::ALARM_ID id)
	Submit alarm registration. More...
virtual void	Alarm0 ()
	Alarm 0 callback. More...
virtual void	Alarm1 ()
	Alarm 1 callback. More...
virtual void	Alarm2 ()
	Alarm 2 callback. More...
float	TimeLeft (AlarmableManager::ALARM_ID id)
	Time left on one of the alarms. More...
errcode	ChangeTime (float t, AlarmableManager::ALARM_ID id)
	Change time. More...
errcode	AddTime (float t, AlarmableManager::ALARM_ID id)
	Adds a time to 'id'. More...
errcode	SubtractTime (float t, AlarmableManager::ALARM_ID id)
	Subtract time. More...
bool	IsRegistered (AlarmableManager::ALARM_ID id)
	Query if 'id' is registered. More...
errcode	SetDeletionIter (int alarmNumber, std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator iter)
std::multimap< float, AlarmableManager::AlarmEvent >::const_iterator	GetDeletionIter (int alarmNumber)
errcode	SetRegistrationState (int alarmNumber, RegistrationState state)
Public Member Functions inherited from Collidable
	Collidable ()
virtual	~Collidable ()
	Collidable (const Collidable &)=delete
const Collidable &	operator= (const Collidable &)=delete
virtual errcode	Collision (Collidable *)
	Collision callback. More...
virtual errcode	CollisionEnter (Collidable *)
	Collision enter. More...
virtual errcode	CollisionExit ()
	Collision exit. More...
virtual errcode	CollisionTerrain (const CollisionVolumeAABB &)
	Collision terrain. More...
template<typename C >
errcode	SubmitCollisionRegistration (C *c)
	Submit collision registration of your type. More...
template<typename C >
errcode	SubmitCollisionDeregistration (C *c)
	Submit collision deregistration for your type. More...
const CollisionVolume &	GetCollisionVolume () const
errcode	SetColliderModel (Model *mod, VolumeType vol)
	Sets collider model. More...
errcode	UpdateCollisionData (Matrix &mat)
	Updates the collision data described by matrix. More...
std::list< Collidable * >::iterator	GetDeletionIter ()
errcode	SetDeletionIter (std::list< Collidable *>::iterator in)
bool	getColliding () const
void	setColliding (bool coll)
const CollisionVolumeBSphere &	getBSphere () const

Private Member Functions
virtual errcode	SceneEntry ()
	Scene entry callback. More...
virtual errcode	SceneExit ()
	Scene exit callback. More...

Private Attributes
RegistrationState	regStateGO
GameObjectDeregistrationCommand *	deregCommand
GameObjectRegistrationCommand *	regCommand

Friends
class	GameObjectRegistrationCommand
class	GameObjectDeregistrationCommand

Additional Inherited Members
Public Attributes inherited from Updatable
std::list< Updatable * >::iterator	deleteIter

Constructor & Destructor Documentation

GameObject() [1/2]

GameObject::GameObject

(

)

~GameObject()

GameObject::~GameObject ( )

virtual

GameObject() [2/2]

GameObject::GameObject ( const GameObject &  )

default

Member Function Documentation

operator=()

GameObject& GameObject::operator= ( const GameObject &  )

default

Friends And Related Function Documentation

GameObjectDeregistrationCommand

friend class GameObjectDeregistrationCommand

friend

GameObjectRegistrationCommand

friend class GameObjectRegistrationCommand

friend

Member Data Documentation

deregCommand

GameObjectDeregistrationCommand* GameObject::deregCommand

private

regCommand

GameObjectRegistrationCommand* GameObject::regCommand

private

regStateGO

RegistrationState GameObject::regStateGO

private

---

The documentation for this class was generated from the following files:

• GameObject.h
• GameObject.cpp
